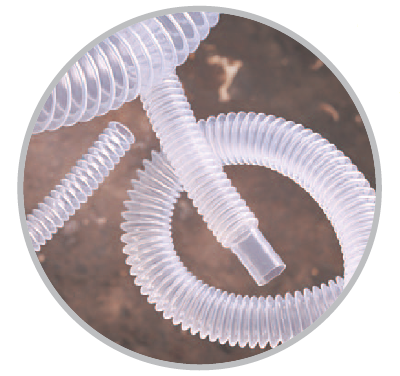

  • Corrtef™ Corrugated Fluorinated Ethylene Propylene (FEP) Tubing
  • Corrtef™ Corrugated Fluorinated Ethylene Propylene (FEP) Tubing - 2
  • Made from FEP fluoropolymer tubing
  • Corrugations allow a nearly zero bend radius - easily flexed
  • Can be extended or compressed without affecting the tube's I.D.
  • Made without plasticizers which can leach into critical streams
  • Made from FDA compliant materials
  • Has all the chemical and electrical properties of straight-walled FEP tubing
  • May be over braided with Kevlar® for higher pressures (Over braiding with Kevlar will permit a minimum increase of six times the listed pressures. Kevlar® over braiding is available for sizes up to 7/8" I.D. - call for details.)
1 - 9 of 9 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

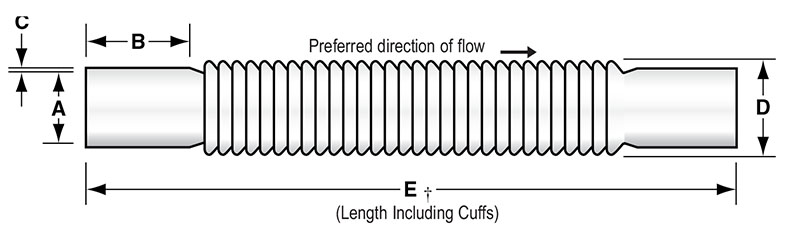

Item #

Item Name

Maximum Inner Diameter (ID) A

Nominal Cuff Length B

Nominal Wall Thickness C

Corrugation Outer Diameter (OD) D

N/A Corrtef™ 1/4 Inch (in) Maximum Inner Diameter (ID) A Corrugated Fluorinated Ethylene Propylene (FEP) Tubing N/A 1/4 in N/A 3/4 in N/A 0.015 in N/A 3/8 in
N/A Corrtef™ 3/8 Inch (in) Maximum Inner Diameter (ID) A Corrugated Fluorinated Ethylene Propylene (FEP) Tubing N/A 3/8 in N/A 1 in N/A 0.020 in N/A 5/8 in
N/A Corrtef™ 1/2 Inch (in) Maximum Inner Diameter (ID) A Corrugated Fluorinated Ethylene Propylene (FEP) Tubing N/A 1/2 in N/A 1 in N/A 0.025 in N/A 3/4 in
N/A Corrtef™ 5/8 Inch (in) Maximum Inner Diameter (ID) A Corrugated Fluorinated Ethylene Propylene (FEP) Tubing N/A 5/8 in N/A 1 in N/A 0.025 in N/A 15/16 in
N/A Corrtef™ 3/4 Inch (in) Maximum Inner Diameter (ID) A Corrugated Fluorinated Ethylene Propylene (FEP) Tubing N/A 3/4 in N/A 1-1/2 in N/A 0.030 in N/A 1-1/16 in
N/A Corrtef™ 7/8 Inch (in) Maximum Inner Diameter (ID) A Corrugated Fluorinated Ethylene Propylene (FEP) Tubing N/A 7/8 in N/A 1-1/2 in N/A 0.030 in N/A 1-1/4 in
N/A Corrtef™ 1 Inch (in) Maximum Inner Diameter (ID) A Corrugated Fluorinated Ethylene Propylene (FEP) Tubing N/A 1 in N/A 2 in N/A 0.035 in N/A 1-7/16 in
N/A Corrtef™ 1-1/2 Inch (in) Maximum Inner Diameter (ID) A Corrugated Fluorinated Ethylene Propylene (FEP) Tubing N/A 1-1/2 in N/A 2 in N/A 0.035 in N/A 1-13/16 in
N/A Corrtef™ 2 Inch (in) Maximum Inner Diameter (ID) A Corrugated Fluorinated Ethylene Propylene (FEP) Tubing N/A 2 in N/A 2 in N/A 0.040 in N/A 2-5/8 in
