  • Pureloc® Perfluoroalkoxy Alkanes (PFA) Compression Fittings

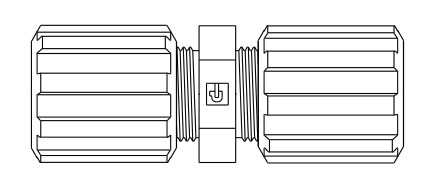

  • Pureloc® Perfluoroalkoxy Alkanes (PFA) Compression Connector Unions
  • PFA body made from virgin, high purity materials
  • Ideally suited for corrosive environments and chemical applications
  • Less surface particulate resulting in cleaner operation
  • Easy to disconnect and reuse
  • Excellent lock and seal ability
  • Numerous configurations available
1 - 5 of 5 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Tubing Outer Diameter (OD)

Fitting Size

Tubing Inner Diameter (ID)

Pressure Ranges

N/A Pureloc® 1/8 Inch (in) Tubing Outer Diameter (OD) Perfluoroalkoxy Alkanes (PFA) Compression Connector Union N/A 1/8 in N/A 1/8 in N/A 1/16 in N/A 125 psig8.6 bar
N/A Pureloc® 1/4 Inch (in) Tubing Outer Diameter (OD) Perfluoroalkoxy Alkanes (PFA) Compression Connector Union N/A 1/4 in N/A 1/4 in N/A 5/32 in N/A 125 psig8.6 bar
N/A Pureloc® 3/8 Inch (in) Tubing Outer Diameter (OD) Perfluoroalkoxy Alkanes (PFA) Compression Connector Union N/A 3/8 in N/A 3/8 in N/A 1/4 in N/A 125 psig8.6 bar
N/A Pureloc® 1/2 Inch (in) Tubing Outer Diameter (OD) Perfluoroalkoxy Alkanes (PFA) Compression Connector Union N/A 1/2 in N/A 1/2 in N/A 3/8 in N/A 125 psig8.6 bar
N/A Pureloc® 3/4 Inch (in) Tubing Outer Diameter (OD) Perfluoroalkoxy Alkanes (PFA) Compression Connector Union N/A 3/4 in N/A 3/4 in N/A 5/8 in N/A 125 psig8.6 bar
