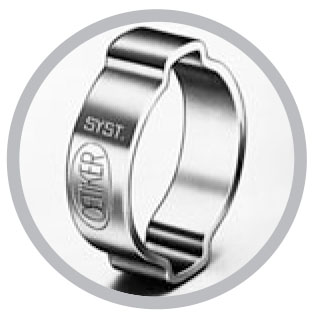

  • Two Ear Clamps
  • UNS S30400 (DIN 1.4301) stainless steel or SAE 1008/1010 (DIN 1.0338) zinc plated carbon steel
  • One-piece design made from spirally welded tubing
1 - 25 of 39 | Results Per Page | View | Unit of Measure
1 2
Request Information Compare Items

Item #

Item Name

Nominal Outer Diameter (OD)

Material

Open Size

Closed Size

N/A 5/32 Inch (in) Nominal Outer Diameter (OD) Stainless Steel Two Ear Clamp N/A 5/32 in N/A Stainless Steel N/A 0.161 in N/A 0.122 in
N/A 3/16 Inch (in) Nominal Outer Diameter (OD) Stainless Steel Two Ear Clamp N/A 3/16 in N/A Stainless Steel N/A 0.197 in N/A 0.118 in
N/A 1/4 Inch (in) Nominal Outer Diameter (OD) Stainless Steel Two Ear Clamp N/A 1/4 in N/A Stainless Steel N/A 0.276 in N/A 0.197 in
N/A 5/16 Inch (in) Nominal Outer Diameter (OD) Stainless Steel Two Ear Clamp N/A 5/16 in N/A Stainless Steel N/A 0.354 in N/A 0.276 in
N/A 3/8 Inch (in) Nominal Outer Diameter (OD) Stainless Steel Two Ear Clamp N/A 3/8 in N/A Stainless Steel N/A 0.433 in N/A 0.319 in
N/A 1/2 Inch (in) Nominal Outer Diameter (OD) Stainless Steel Two Ear Clamp N/A 1/2 in N/A Stainless Steel N/A 0.512 in N/A 0.433 in
N/A 9/16 Inch (in) Nominal Outer Diameter (OD) Stainless Steel Two Ear Clamp N/A 9/16 in N/A Stainless Steel N/A 0.591 in N/A 0.492 in
N/A 19/32 Inch (in) Nominal Outer Diameter (OD) Stainless Steel Two Ear Clamp N/A 19/32 in N/A Stainless Steel N/A 0.669 in N/A 0.551 in
N/A 5/8 Inch (in) Nominal Outer Diameter (OD) Stainless Steel Two Ear Clamp N/A 5/8 in N/A Stainless Steel N/A 0.708 in N/A 0.591 in
N/A 3/4 Inch (in) Nominal Outer Diameter (OD) Stainless Steel Two Ear Clamp N/A 3/4 in N/A Stainless Steel N/A 0.787 in N/A 0.638 in
N/A 13/16 Inch (in) Nominal Outer Diameter (OD) Stainless Steel Two Ear Clamp N/A 13/16 in N/A Stainless Steel N/A 0.866 in N/A 0.713 in
N/A 7/8 Inch (in) Nominal Outer Diameter (OD) Stainless Steel Two Ear Clamp N/A 7/8 in N/A Stainless Steel N/A 0.906 in N/A 0.752 in
N/A 15/16 Inch (in) Nominal Outer Diameter (OD) Stainless Steel Two Ear Clamp N/A 15/16 in N/A Stainless Steel N/A 0.984 in N/A 0.831 in
N/A 1 Inch (in) Nominal Outer Diameter (OD) Stainless Steel Two Ear Clamp N/A 1 in N/A Stainless Steel N/A 1.063 in N/A 0.886 in
N/A 1-1/16 Inch (in) Nominal Outer Diameter (OD) Stainless Steel Two Ear Clamp N/A 1-1/16 in N/A Stainless Steel N/A 1.102 in N/A 0.945 in
N/A 1-1/8 Inch (in) Nominal Outer Diameter (OD) Stainless Steel Two Ear Clamp N/A 1-1/8 in N/A Stainless Steel N/A 1.220 in N/A 1.035 in
N/A 1-5/16 Inch (in) Nominal Outer Diameter (OD) Stainless Steel Two Ear Clamp N/A 1-5/16 in N/A Stainless Steel N/A 1.339 in N/A 1.154 in
N/A 1-7/16 Inch (in) Nominal Outer Diameter (OD) Stainless Steel Two Ear Clamp N/A 1-7/16 in N/A Stainless Steel N/A 1.457 in N/A 1.260 in
N/A 1-1/2 Inch (in) Nominal Outer Diameter (OD) Stainless Steel Two Ear Clamp N/A 1-1/2 in N/A Stainless Steel N/A 1.575 in N/A 1.378 in
N/A 5/32 Inch (in) Nominal Outer Diameter (OD) Zinc Plated Carbon Steel Two Ear Clamp N/A 5/32 in N/A Zinc Plated Carbon Steel N/A 0.161 in N/A 0.122 in
N/A 11/64 Inch (in) Nominal Outer Diameter (OD) Zinc Plated Carbon Steel Two Ear Clamp N/A 11/64 in N/A Zinc Plated Carbon Steel N/A 0.177 in N/A 0.138 in
N/A 3/16 Inch (in) Nominal Outer Diameter (OD) Zinc Plated Carbon Steel Two Ear Clamp N/A 3/16 in N/A Zinc Plated Carbon Steel N/A 0.197 in N/A 0.118 in
N/A 1/4 Inch (in) Nominal Outer Diameter (OD) Zinc Plated Carbon Steel Two Ear Clamp N/A 1/4 in N/A Zinc Plated Carbon Steel N/A 0.276 in N/A 0.197 in
N/A 5/16 Inch (in) Nominal Outer Diameter (OD) Zinc Plated Carbon Steel Two Ear Clamp N/A 5/16 in N/A Zinc Plated Carbon Steel N/A 0.354 in N/A 0.276 in
N/A 3/8 Inch (in) Nominal Outer Diameter (OD) Zinc Plated Carbon Steel Two Ear Clamp N/A 3/8 in N/A Zinc Plated Carbon Steel N/A 0.433 in N/A 0.319 in
