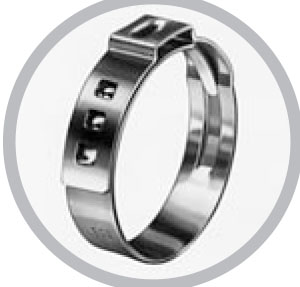

One Ear Stepless Clamps On NewAge Industries, Inc.

COMPANY HEADER

UNS S30400 (DIN 1.4301) stainless steel
Patented design guarantees 360º seal preventing leaks on soft or thin walled hose or tubing
One-ear design allows easy accessibility

1 - 22 of 22 | Results Per Page | View | Unit of Measure

Request Information Compare Items

Item #	Item Name	Nominal Outer Diameter (OD)	Material	Open Size	Closed Size

582 5351	N/A 9/32 Inch (in) Nominal Outer Diameter (OD) One Ear Stepless Clamp	N/A 9/32 in	N/A Stainless Steel	N/A 0.275 in	N/A 0.228 in
582 5365	N/A 5/16 Inch (in) Nominal Outer Diameter (OD) One Ear Stepless Clamp	N/A 5/16 in	N/A Stainless Steel	N/A 0.315 in	N/A 0.268 in
582 5379	N/A 11/32 Inch (in) Nominal Outer Diameter (OD) One Ear Stepless Clamp	N/A 11/32 in	N/A Stainless Steel	N/A 0.343 in	N/A 0.275 in
582 5393	N/A 3/8 Inch (in) Nominal Outer Diameter (OD) One Ear Stepless Clamp	N/A 3/8 in	N/A Stainless Steel	N/A 0.374 in	N/A 0.307 in
582 5400	N/A 25/64 Inch (in) Nominal Outer Diameter (OD) One Ear Stepless Clamp	N/A 25/64 in	N/A Stainless Steel	N/A 0.394 in	N/A 0.327 in
582 5407	N/A 13/32 Inch (in) Nominal Outer Diameter (OD) One Ear Stepless Clamp	N/A 13/32 in	N/A Stainless Steel	N/A 0.413 in	N/A 0.346 in
582 5435	N/A 15/32 Inch (in) Nominal Outer Diameter (OD) One Ear Stepless Clamp	N/A 15/32 in	N/A Stainless Steel	N/A 0.484 in	N/A 0.385 in
582 5449	N/A 1/2 Inch (in) Nominal Outer Diameter (OD) One Ear Stepless Clamp	N/A 1/2 in	N/A Stainless Steel	N/A 0.524 in	N/A 0.425 in
582 5463	N/A 17/32 Inch (in) Nominal Outer Diameter (OD) One Ear Stepless Clamp	N/A 17/32 in	N/A Stainless Steel	N/A 0.543 in	N/A 0.445 in
582 5470	N/A 35/64 Inch (in) Nominal Outer Diameter (OD) One Ear Stepless Clamp	N/A 35/64 in	N/A Stainless Steel	N/A 0.551 in	N/A 0.453 in
582 5477	N/A 9/16 Inch (in) Nominal Outer Diameter (OD) One Ear Stepless Clamp	N/A 9/16 in	N/A Stainless Steel	N/A 0.571 in	N/A 0.472 in
582 5505	N/A 5/8 Inch (in) Nominal Outer Diameter (OD) One Ear Stepless Clamp	N/A 5/8 in	N/A Stainless Steel	N/A 0.618 in	N/A 0.520 in
582 5533	N/A 11/16 Inch (in) Nominal Outer Diameter (OD) One Ear Stepless Clamp	N/A 11/16 in	N/A Stainless Steel	N/A 0.669 in	N/A 0.571 in
582 5547	N/A 23/32 Inch (in) Nominal Outer Diameter (OD) One Ear Stepless Clamp	N/A 23/32 in	N/A Stainless Steel	N/A 0.728 in	N/A 0.602 in
582 5561	N/A 3/4 Inch (in) Nominal Outer Diameter (OD) One Ear Stepless Clamp	N/A 3/4 in	N/A Stainless Steel	N/A 0.779 in	N/A 0.654 in
582 5617	N/A 7/8 Inch (in) Nominal Outer Diameter (OD) One Ear Stepless Clamp	N/A 7/8 in	N/A Stainless Steel	N/A 0.890 in	N/A 0.764 in
582 5645	N/A 15/16 Inch (in) Nominal Outer Diameter (OD) One Ear Stepless Clamp	N/A 15/16 in	N/A Stainless Steel	N/A 0.949 in	N/A 0.823 in
582 5673	N/A 1 Inch (in) Nominal Outer Diameter (OD) One Ear Stepless Clamp	N/A 1 in	N/A Stainless Steel	N/A 1.008 in	N/A 0.882 in
582 5687	N/A 1-1/16 Inch (in) Nominal Outer Diameter (OD) One Ear Stepless Clamp	N/A 1-1/16 in	N/A Stainless Steel	N/A 1.067 in	N/A 0.941 in
582 5701	N/A 1-1/8 Inch (in) Nominal Outer Diameter (OD) One Ear Stepless Clamp	N/A 1-1/8 in	N/A Stainless Steel	N/A 1.126 in	N/A 1.000 in
582 5743	N/A 1-5/16 Inch (in) Nominal Outer Diameter (OD) One Ear Stepless Clamp	N/A 1-5/16 in	N/A Stainless Steel	N/A 1.303 in	N/A 1.177 in
582 5771	N/A 1-7/16 Inch (in) Nominal Outer Diameter (OD) One Ear Stepless Clamp	N/A 1-7/16 in	N/A Stainless Steel	N/A 1.421 in	N/A 1.295 in

1 - 22 of 22 | Results Per Page | View | Unit of Measure
