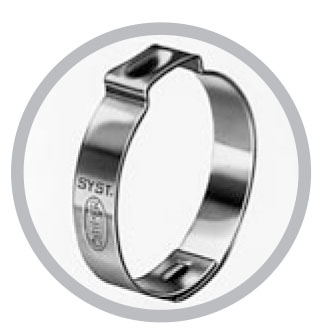

  • One Ear Clamps
  • Made of UNS S30400 (DIN 1.4301) stainless steel or SAE 1008/1010 (DIN 1.0338) zinc plated carbon steel
  • Features a mechanical lock at the joint instead of a spot weld - prevents failure due to corrosion
1 - 25 of 46 | Results Per Page | View | Unit of Measure
1 2
Request Information Compare Items

Item #

Item Name

Nominal Outer Diameter (OD)

Material

Open Size

Closed Size

N/A 3/8 Inch (in) Nominal Outer Diameter (OD) Stainless Steel One Ear Clamp N/A 3/8 in N/A Stainless Steel N/A 0.414 in N/A 0.350 in
N/A 15/32 Inch (in) Nominal Outer Diameter (OD) Stainless Steel One Ear Clamp N/A 15/32 in N/A Stainless Steel N/A 0.484 in N/A 0.409 in
N/A 1/2 Inch (in) Nominal Outer Diameter (OD) Stainless Steel One Ear Clamp N/A 1/2 in N/A Stainless Steel N/A 0.524 in N/A 0.449 in
N/A 35/64 Inch (in) Nominal Outer Diameter (OD) Stainless Steel One Ear Clamp N/A 35/64 in N/A Stainless Steel N/A 0.551 in N/A 0.469 in
N/A 9/16 Inch (in) Nominal Outer Diameter (OD) Stainless Steel One Ear Clamp N/A 9/16 in N/A Stainless Steel N/A 0.571 in N/A 0.496 in
N/A 5/8 Inch (in) Nominal Outer Diameter (OD) Stainless Steel One Ear Clamp N/A 5/8 in N/A Stainless Steel N/A 0.618 in N/A 0.532 in
N/A 11/16 Inch (in) Nominal Outer Diameter (OD) Stainless Steel One Ear Clamp N/A 11/16 in N/A Stainless Steel N/A 0.669 in N/A 0.594 in
N/A 23/32 Inch (in) Nominal Outer Diameter (OD) Stainless Steel One Ear Clamp N/A 23/32 in N/A Stainless Steel N/A 0.728 in N/A 0.618 in
N/A 3/4 Inch (in) Nominal Outer Diameter (OD) Stainless Steel One Ear Clamp N/A 3/4 in N/A Stainless Steel N/A 0.779 in N/A 0.669 in
N/A 13/16 Inch (in) Nominal Outer Diameter (OD) Stainless Steel One Ear Clamp N/A 13/16 in N/A Stainless Steel N/A 0.827 in N/A 0.717 in
N/A 7/8 Inch (in) Nominal Outer Diameter (OD) Stainless Steel One Ear Clamp N/A 7/8 in N/A Stainless Steel N/A 0.890 in N/A 0.780 in
N/A 15/16 Inch (in) Nominal Outer Diameter (OD) Stainless Steel One Ear Clamp N/A 15/16 in N/A Stainless Steel N/A 0.949 in N/A 0.839 in
N/A 1 Inch (in) Nominal Outer Diameter (OD) Stainless Steel One Ear Clamp N/A 1 in N/A Stainless Steel N/A 1.008 in N/A 0.898 in
N/A 1-1/16 Inch (in) Nominal Outer Diameter (OD) Stainless Steel One Ear Clamp N/A 1-1/16 in N/A Stainless Steel N/A 1.067 in N/A 0.945 in
N/A 1-1/8 Inch (in) Nominal Outer Diameter (OD) Stainless Steel One Ear Clamp N/A 1-1/8 in N/A Stainless Steel N/A 1.126 in N/A 1.004 in
N/A 1-3/16 Inch (in) Nominal Outer Diameter (OD) Stainless Steel One Ear Clamp N/A 1-3/16 in N/A Stainless Steel N/A 1.185 in N/A 1.063 in
N/A 1-1/4 Inch (in) Nominal Outer Diameter (OD) Stainless Steel One Ear Clamp N/A 1-1/4 in N/A Stainless Steel N/A 1.244 in N/A 1.122 in
N/A 1-5/16 Inch (in) Nominal Outer Diameter (OD) Stainless Steel One Ear Clamp N/A 1-5/16 in N/A Stainless Steel N/A 1.303 in N/A 1.181 in
N/A 1-3/8 Inch (in) Nominal Outer Diameter (OD) Stainless Steel One Ear Clamp N/A 1-3/8 in N/A Stainless Steel N/A 1.362 in N/A 1.240 in
N/A 1-7/16 Inch (in) Nominal Outer Diameter (OD) Stainless Steel One Ear Clamp N/A 1-7/16 in N/A Stainless Steel N/A 1.421 in N/A 1.299 in
N/A 1-15/32 Inch (in) Nominal Outer Diameter (OD) Stainless Steel One Ear Clamp N/A 1-15/32 in N/A Stainless Steel N/A 1.480 in N/A 1.358 in
N/A 1-1/2 Inch (in) Nominal Outer Diameter (OD) Stainless Steel One Ear Clamp N/A 1-1/2 in N/A Stainless Steel N/A 1.500 in N/A 1.378 in
N/A 1-9/16 Inch (in) Nominal Outer Diameter (OD) Stainless Steel One Ear Clamp N/A 1-9/16 in N/A Stainless Steel N/A 1.559 in N/A 1.437 in
N/A 3/8 Inch (in) Nominal Outer Diameter (OD) Zinc Plated Carbon Steel One Ear Clamp N/A 3/8 in N/A Zinc Plated Carbon Steel N/A 0.414 in N/A 0.350 in
N/A 7/16 Inch (in) Nominal Outer Diameter (OD) Zinc Plated Carbon Steel One Ear Clamp N/A 7/16 in N/A Zinc Plated Carbon Steel N/A 0.444 in N/A 0.381 in
