  • Newloc® Brass Push-To-Connect Fittings

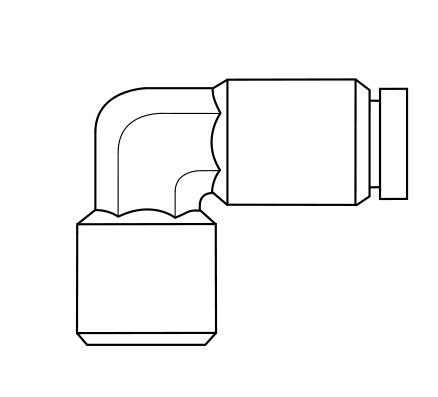

  • Newloc® Brass Push-To-Connect Female 90 Degree Elbows
  • Extremely easy to install - no tools necessary
  • Made of durable brass - elbows and tees are forged
  • Much higher temperature/pressure ratings than that of plastic Newloc®
  • No flow restrictions
  • All male pipe threads come with a pre-applied fluoropolymer sealant
  • Easy to disconnect and reuse
1 - 5 of 5 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Tubing Outer Diameter (OD)

National Pipe Thread (NPT) Size

Connection Type

Angle

N/A Newloc® 1/8 Inch (in) Tubing Outer Diameter (OD) Brass Push-To-Connect Female 90 Degree Elbow N/A 1/8 in N/A 1/8 in N/A Female N/A 90 º
N/A Newloc® 5/32 Inch (in) Tubing Outer Diameter (OD) Brass Push-To-Connect Female 90 Degree Elbow N/A 5/32 in N/A 1/8 in N/A Female N/A 90 º
N/A Newloc® 1/4 Inch (in) Tubing Outer Diameter (OD) Brass Push-To-Connect Female 90 Degree Elbow N/A 1/4 in N/A 1/8 in N/A Female N/A 90 º
N/A Newloc® 1/4 Inch (in) Tubing Outer Diameter (OD) Brass Push-To-Connect Female 90 Degree Elbow N/A 1/4 in N/A 1/4 in N/A Female N/A 90 º
N/A Newloc® 3/8 Inch (in) Tubing Outer Diameter (OD) Brass Push-To-Connect Female 90 Degree Elbow N/A 3/8 in N/A 1/4 in N/A Female N/A 90 º
