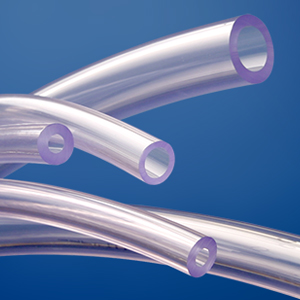

  • Clearflo<sup>®</sup> Ag-47 Antimicrobial Clear PVC Tubing
  • Made from non-toxic ingredients conforming to FDA standards
  • Free of phthalates, latex and animal-derived ingredients
  • Listed by the National Sanitation Foundation (NSF-51) for food equipment materials
  • Antimicrobial ingredient is throughout the tubing, not only on an inside liner as with other products
  • Transparent for visual flow contact
  • Contains antimicrobial technology to guard against bacteria such as E. coli, listeria, salmonella, legionella, MRSA, campylobacter and pseudomonas
  • Well suited for food and beverage applications including non-fatty aqueous, milk and alcoholic beverages (below 20 % ABV)
  • Heat sealable
1 - 17 of 17 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Inner Diameter

Outer Diameter

Wall Thickness (Fraction)

Working Pressure at 70 Degree Fahrenheit (ºF) Temperature

Burst Pressure at 70 Degree Fahrenheit (ºF) Temperature

N/A 1/8 in N/A 1/4 in N/A 1/16 in N/A 165 psi N/A 497 psi
N/A 1/8 in N/A 3/8 in N/A 1/8 in N/A 236 psi N/A 709 psi
N/A 3/16 in N/A 5/16 in N/A 1/16 in N/A 126 psi N/A 379 psi
N/A 3/16 in N/A 7/16 in N/A 1/8 in N/A 180 psi N/A 540 psi
N/A 1/4 in N/A 3/8 in N/A 1/16 in N/A 100 psi N/A 301 psi
N/A 1/4 in N/A 1/2 in N/A 1/8 in N/A 161 psi N/A 482 psi
N/A 5/16 in N/A 7/16 in N/A 1/16 in N/A 83 psi N/A 248 psi
N/A 5/16 in N/A 9/16 in N/A 1/8 in N/A 121 psi N/A 364 psi
N/A 3/8 in N/A 1/2 in N/A 1/16 in N/A 74 psi N/A 223 psi
N/A 3/8 in N/A 5/8 in N/A 1/8 in N/A 108 psi N/A 324 psi
N/A 1/2 in N/A 5/8 in N/A 1/16 in N/A 51 psi N/A 154 psi
N/A 1/2 in N/A 3/4 in N/A 1/8 in N/A 83 psi N/A 249 psi
N/A 5/8 in N/A 3/4 in N/A 1/16 in N/A 45 psi N/A 136 psi
N/A 5/8 in N/A 7/8 in N/A 1/8 in N/A 69 psi N/A 209 psi
N/A 3/4 in N/A 7/8 in N/A 1/16 in N/A 37 psi N/A 111 psi
N/A 3/4 in N/A 1 in N/A 1/8 in N/A 57 psi N/A 171 psi
N/A 1 in N/A 1-1/4 in N/A 1/8 in N/A 42 psi N/A 127 psi
